Using your Form to Navigate to a Location

GoCanvas will automatically generate a navigation button for fields containing addresses, allowing users to click to get directions to a location.

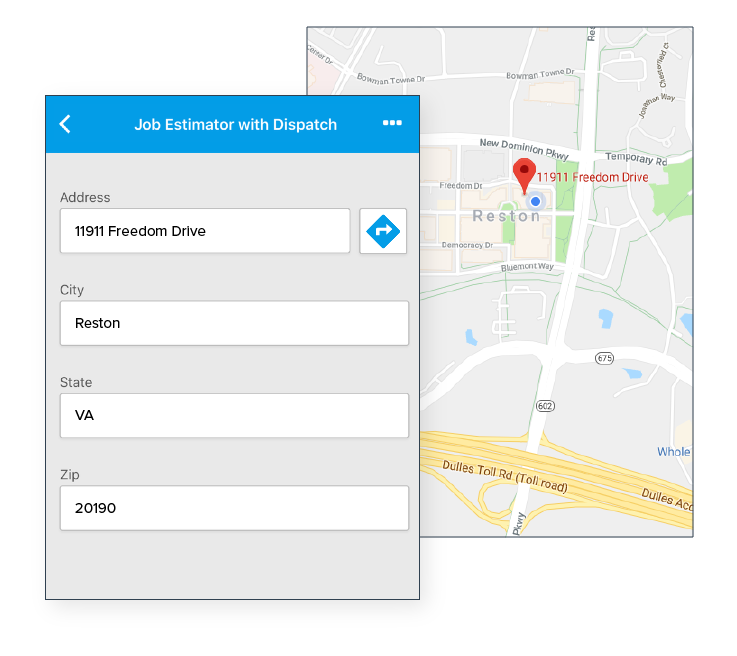

Navigation Button

This feature is especially helpful in combination with Dispatch, so you can give your users in the field a quick, easy way to navigate to where they’re performing work that day.

If your form has a field containing the word "Address," "Street," or "Line 1," the form will automatically show the navigation button on mobile.

There are a few specifications you’ll need to be aware of in order to enable this behavior:

• This will only appear on Short or Long Text fields.
• This will not appear on Labels Left screens, Key Field screens, or Grid screens.
• If you also have separate fields for Address 2, Line 2, Street 2, City, State, Zip, Locality, Town, Region, Province, County, Territory, Postal Code, and Post Code, GoCanvas will pull that data into the address as well.

When the mobile user taps the button, they will be prompted to select an application to use to navigate. Android will show any application on the device that allows this. iOS devices will only show Apple Maps, Google Maps, and Waze.

If you’re dispatching to users and want them to be able to quickly access directions to the location, simply pre-populate the address fields when you’re creating the dispatch.
