Mirror Fields are a convenient solution for when a field value captured earlier in the form needs to be reviewed later in the form.
Mirror Fields
Mirror Fields eliminate any wasted time backtracking through the form to reference information captured earlier in the form. If you often find yourself flipping back through a paper form to find something you need to know later in the form, use a Mirror field.
Adding a Mirror Field

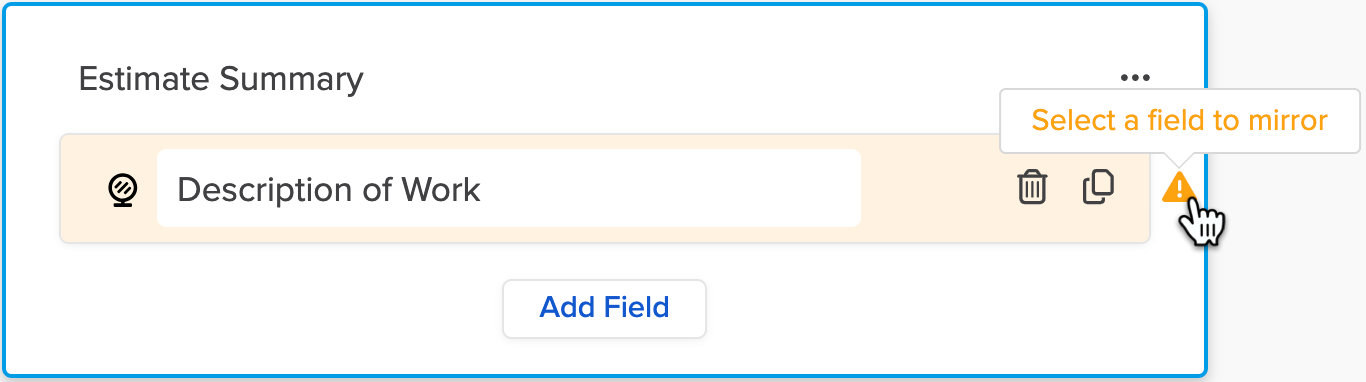

- In the center preview, select + Add Field, type Mirror, and Enter to add the field.
- Select the gear icon associated with the field to open the Field Settings modal.

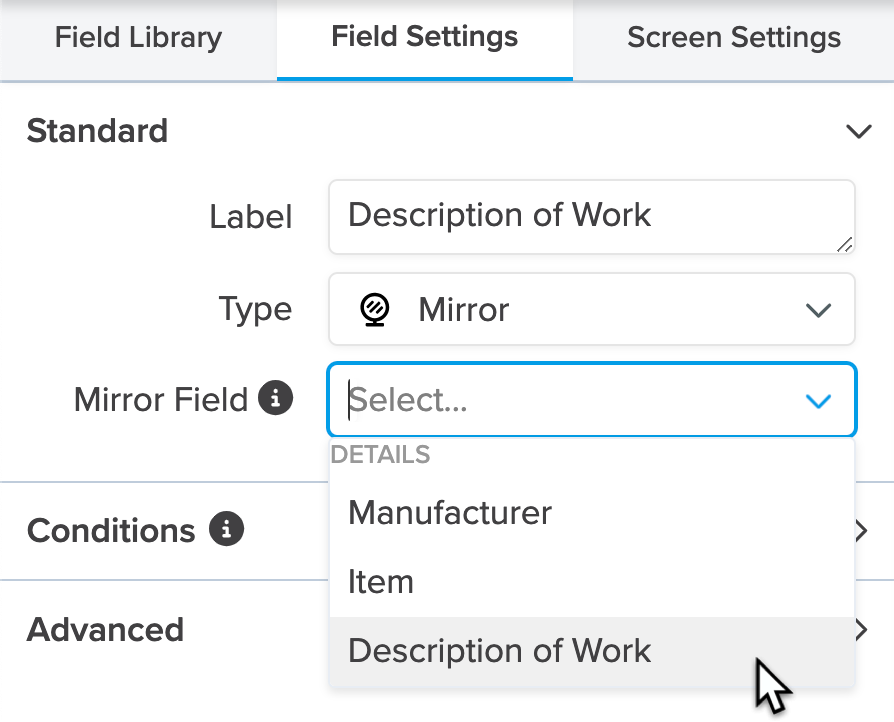

- Under Field Type, expand the drop down for "Mirror from which screen?" and select the Screen Name of the screen where the field you want to mirror is located.
- Expand the drop down for "Mirror from which field?" and select the field that you want to mirror. Only eligible field types will be listed here.
- Save and Publish to see the field on mobile.

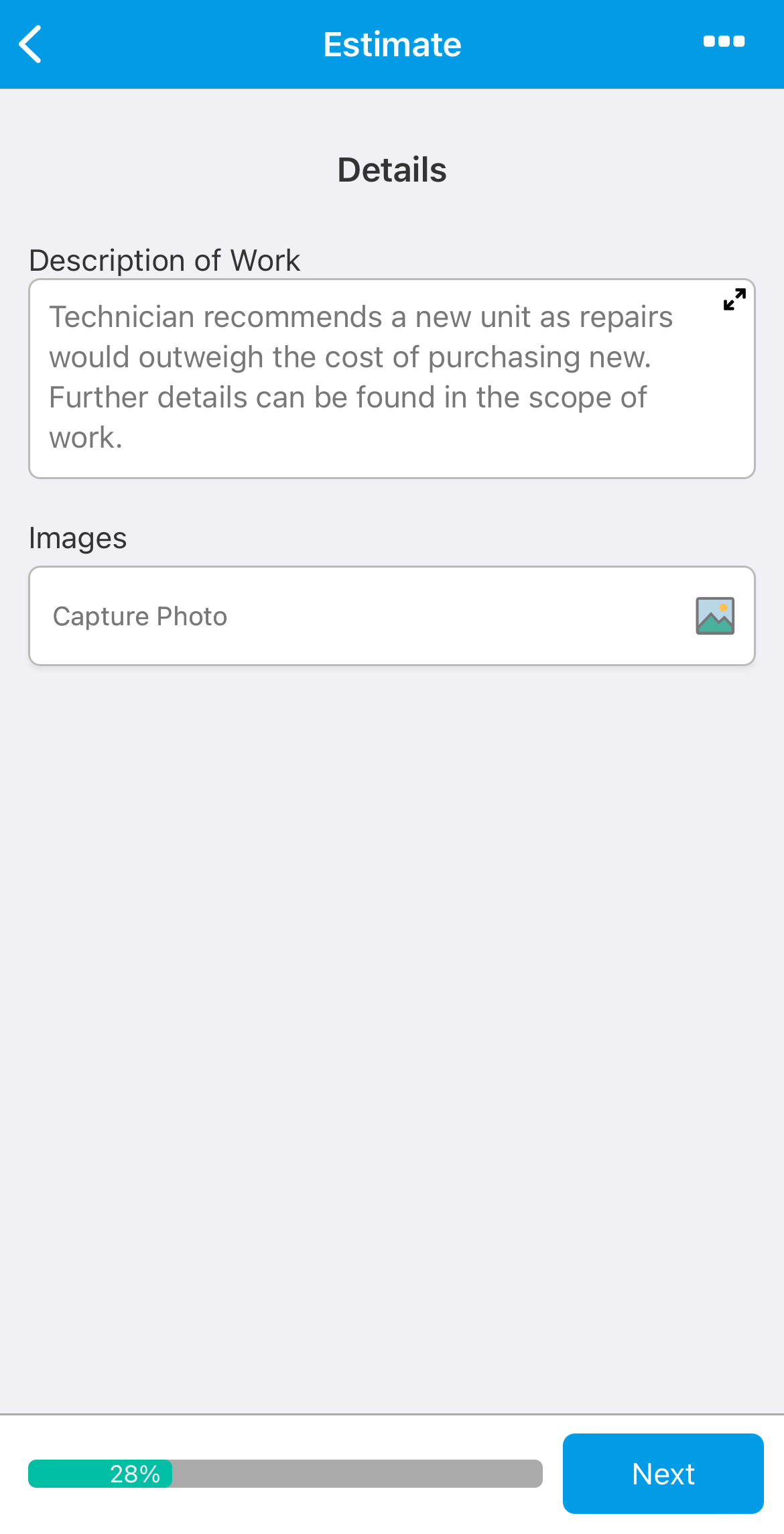

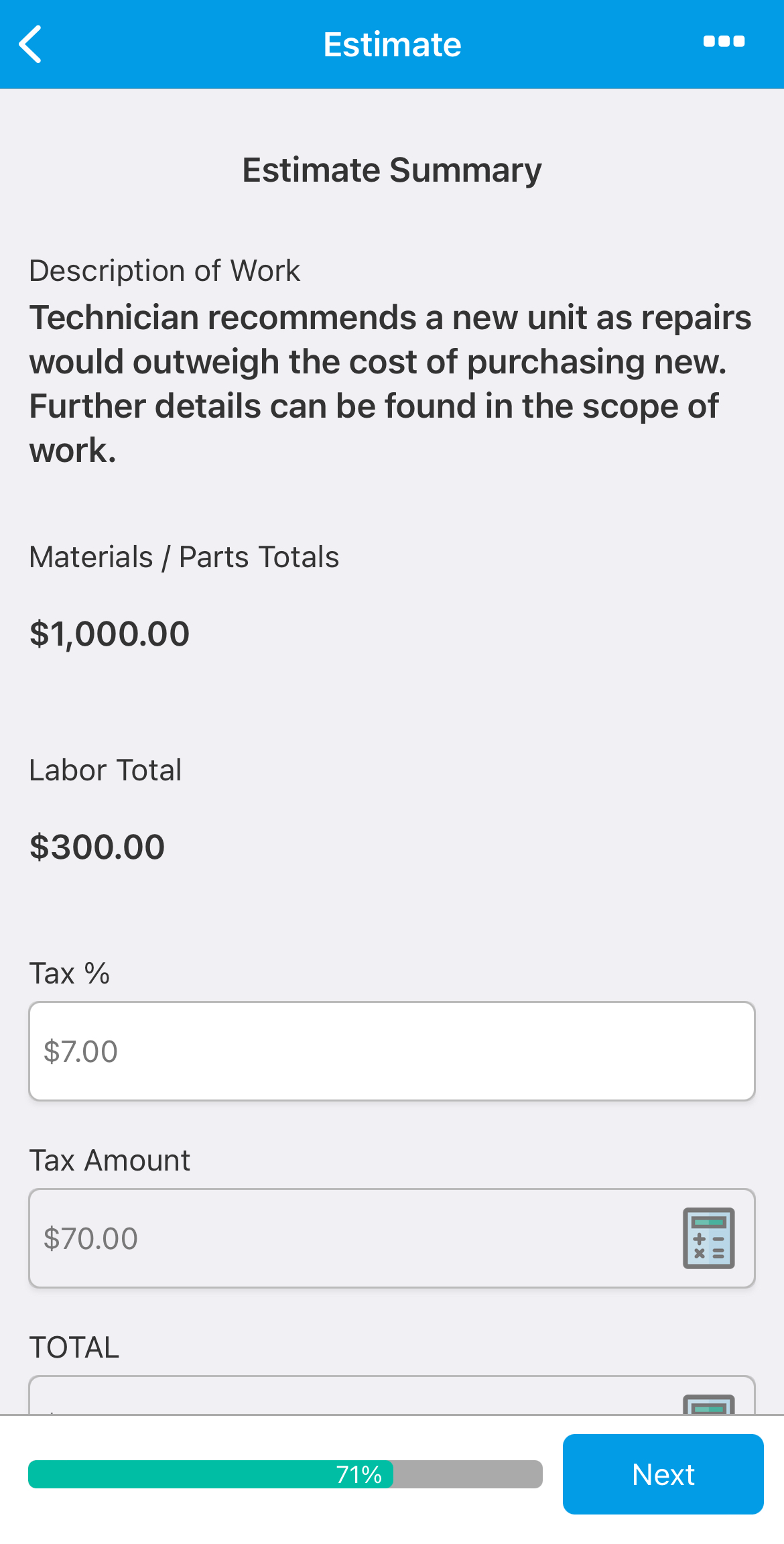

Mirror Fields on Mobile
Mirroring Specifications
Mirror fields will take on the type of field that they are mirroring. That is, if the original field is a number field in the style of currency, the mirror field will also have those attributes.
| Field Types you Can Mirror | Field Types you Cannot Mirror |
|---|---|
| Text and Static Text | Photo |
| Number and Rating | Signature |
| Calculation | Drawing |
| Single Choice and Multiple Choice | GPS |
| Date and Time | Link |
| Checkbox | Payment |
| Barcode | Mirror |
Additional Details of Note
- Mirror fields that are on the same screen.
- Mirror fields across Workflow Handoffs.
- Give the mirrored field a different name than the original field.
- Edit the mirrored field; it will appear as a read-only field in your submission.
- Mirror fields contained within a Table.
