Field Labels in the Legacy Builder

Field Labels are the name of the data entry area (i.e. Field) in a GoCanvas form that tells users what information to enter into the field.

Field Labels

Field Labels appear on every type of Field in the Form Builder. As a best practice, your field label should be as descriptive as possible, while still being concise enough to allow users to skip fields they don't need and enter information as quickly as possible.

They display either above or to the left of the field when filling out your form, depending on your Screen Settings.

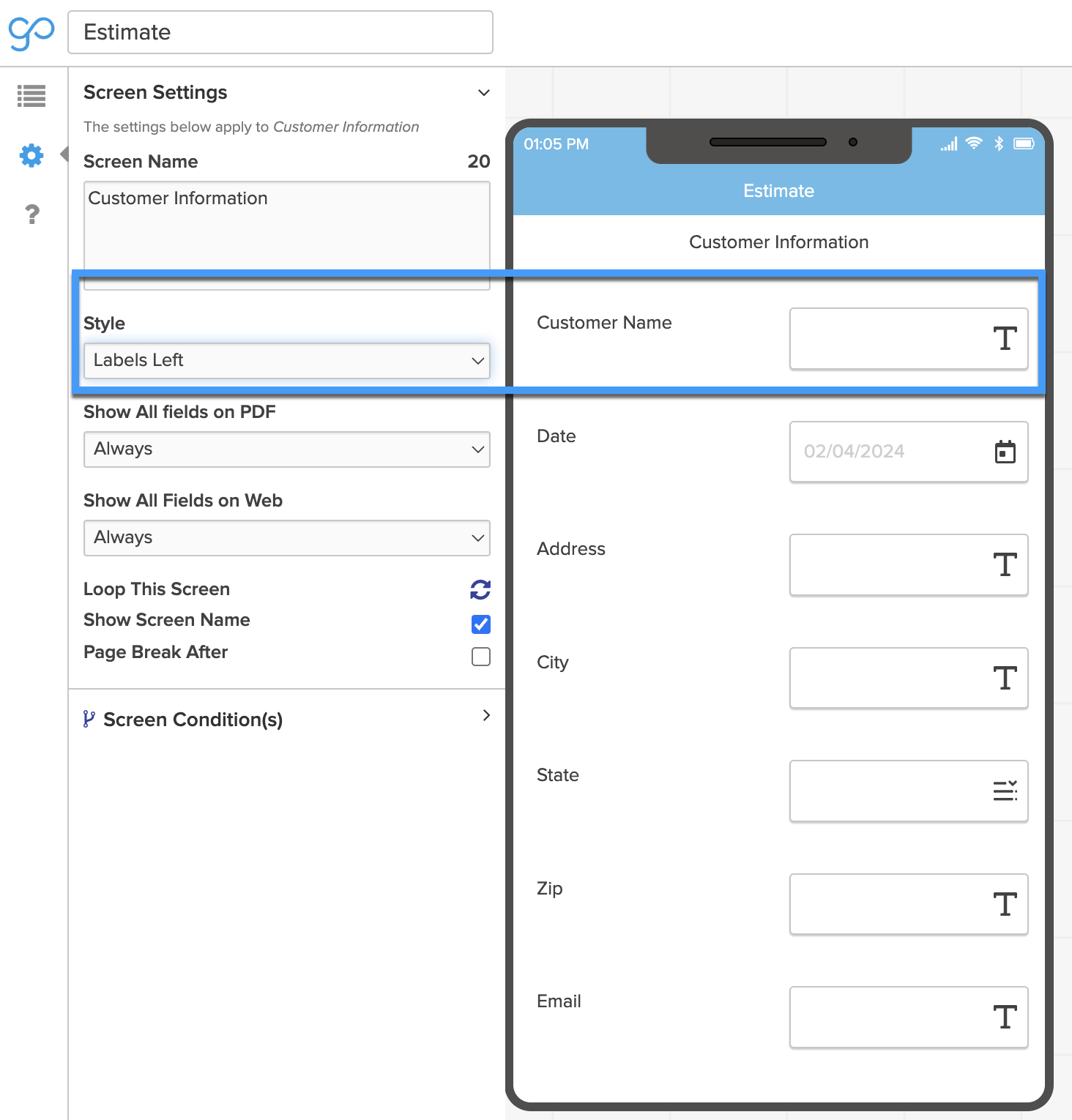

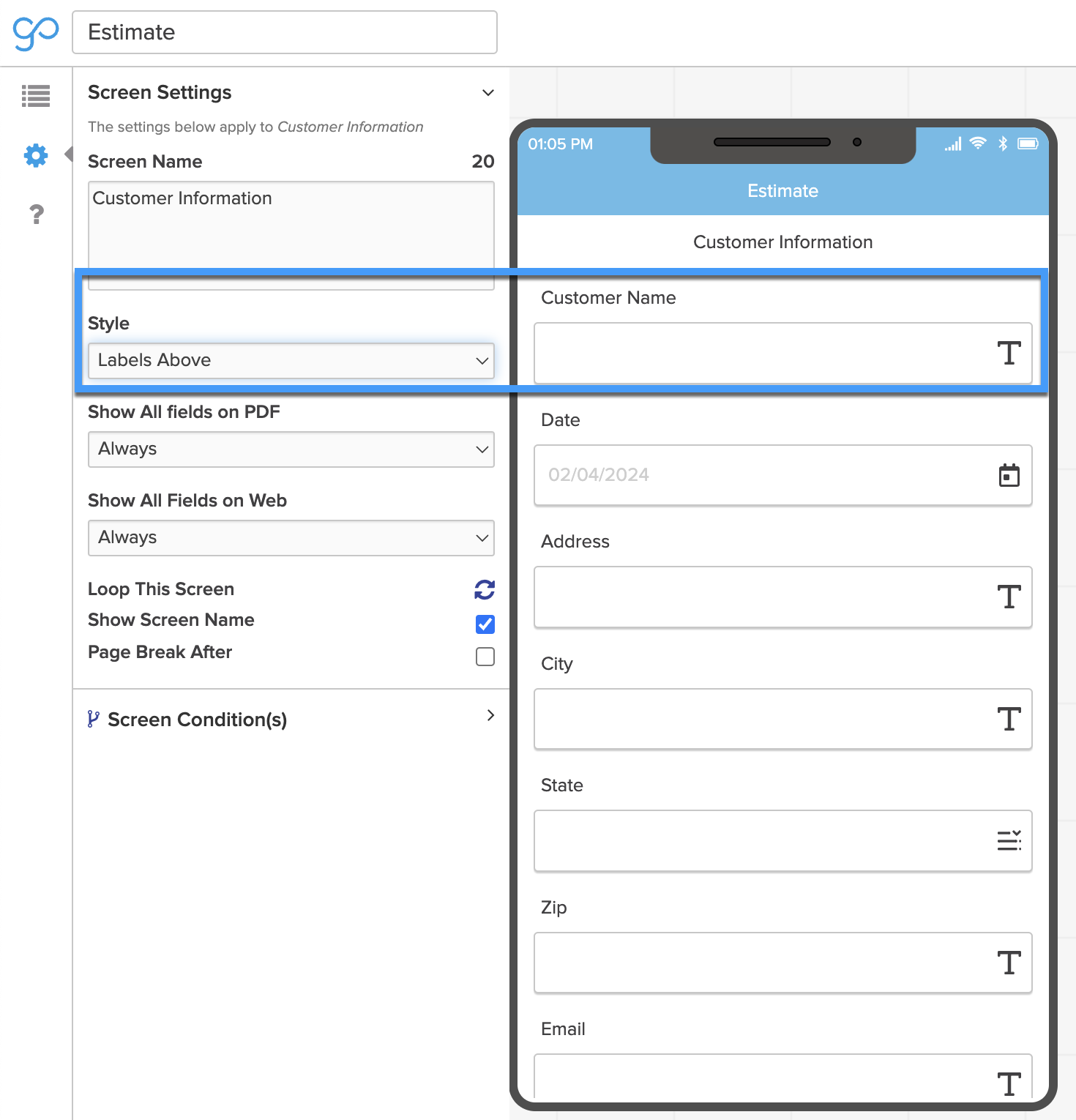

Labels Above Labels Left

There are different character limits, depending on your Style. Labels Left has a 25 character limit, while Labels Above has a 2,500 character limit. However, we don't recommend making field labels that long, for the sake of navigability and usability.

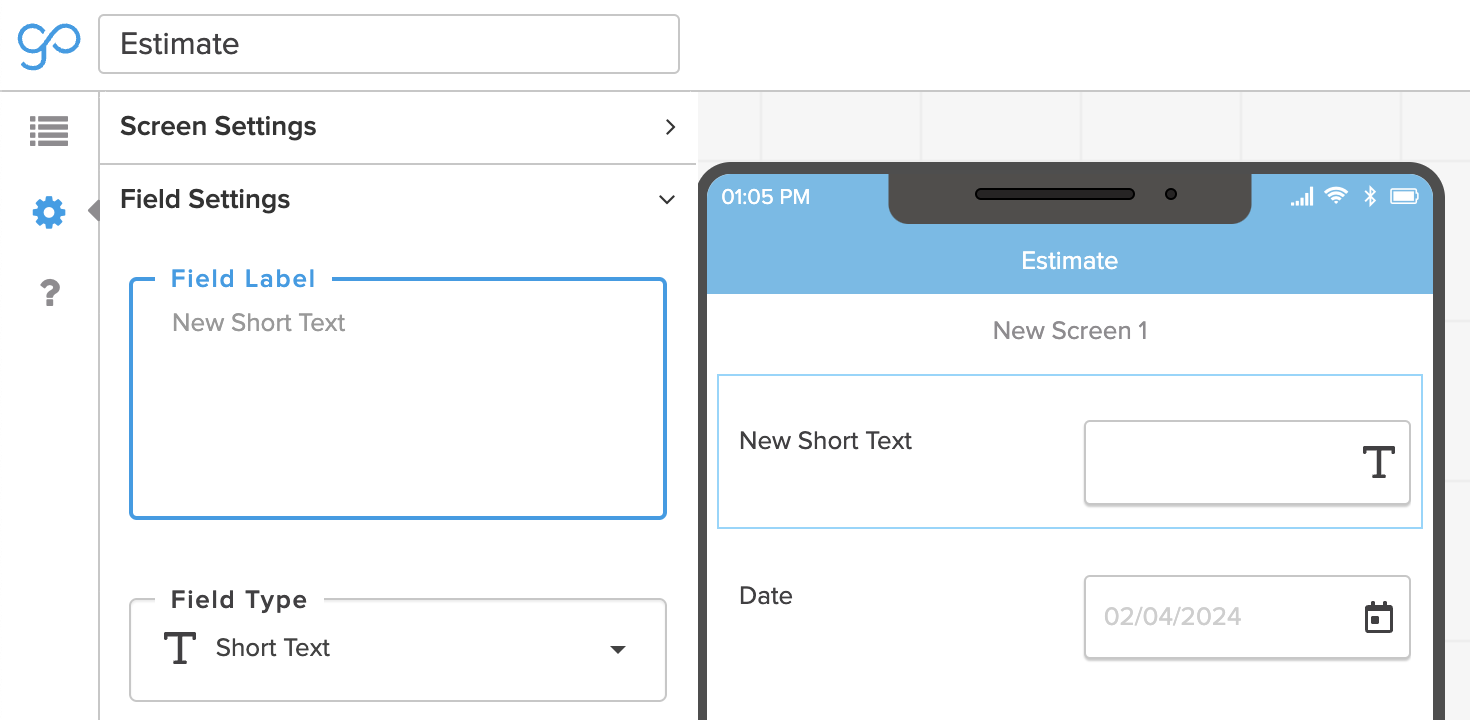

In the Form Builder, the field label will default to New followed by the type of field it is and if you delete your field label value, it will revert to that pattern.

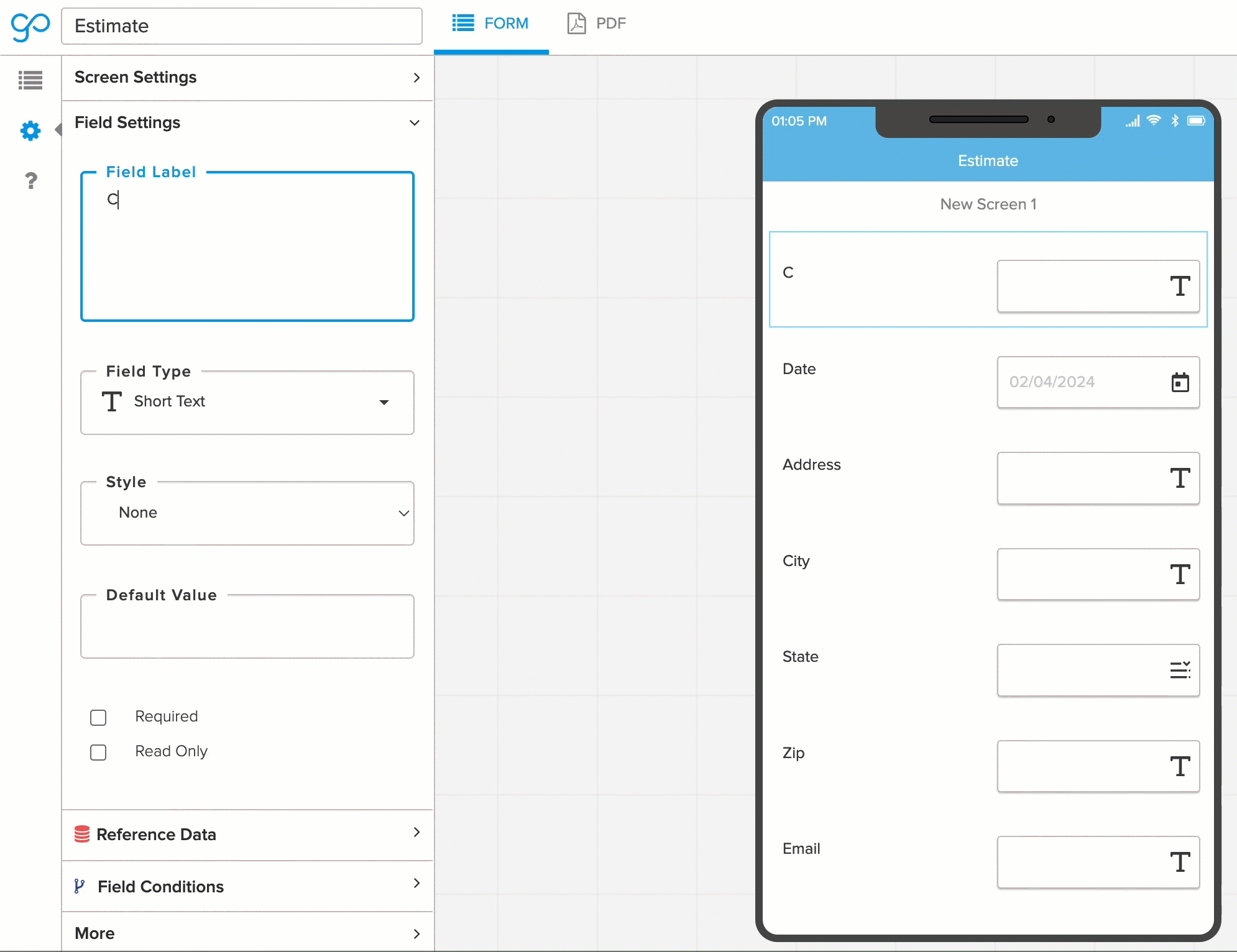

You can change your field label either in the Field Settings panel or by selecting the field in the center preview and then selecting the field label bar so that the cursor appears. The field labels will update in both places simultaneously as you make changes.
