The third and final step of the reference data process is to attach the columns in the file to the fields in the form. Since we were careful in formatting our spreadsheet and naming it something memorable when uploading, this step should be straight forward.
How to Map the Parent Field
First, we must establish the first field that will automatically fill the values for the remaining fields. This is called the Parent Field and is the unique identifier of your dataset.
Note
This is also the only step required if you are using reference data to populate a standalone drop down list.
- Find or create a field that will be attached to reference data. In most cases, it is easiest to use the Single Choice in the style of Dropdown for your parent field. Select the gear to open the Field Settings modal.
- Toggle to the Reference Data tab.
- Expand the Reference Data File drop down and select the correct file for this field.
- The Reference Column is the column of data from your file that you want to appear in this field. In our example, we designated the "Customer Name" to be the parent field.
Once the first two drop down menus have been selected, the Parent Field is complete. The third and fourth drop down menus will be filled in for those fields that are referencing the parent field but the parent field only references one thing and that is the file in the first drop down menu.
How to Map Fields to Fill Automatically based on the Parent Field
If we remember the two purposes of reference data, either to populate a drop down list or auto-populate fields, this next step would apply for when we want to auto-populate fields based on the value selected in the parent field.
Note
If one field does not determine all the following fields but actually filters the next list of items to less choices but not only one, you will need to use the dependent reference data method for mapping your fields.
- Find or create the next field that will be attached to the reference data. Select the gear to open the Field Settings modal.
- Toggle to the Reference Data tab.

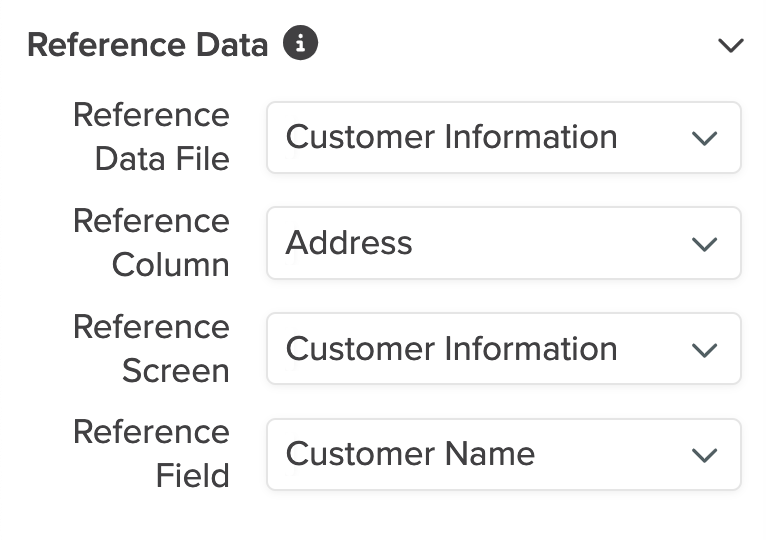

- Select the same reference data file used for the parent field from the first drop down menu.
- Choose the column of data from your file that you want to appear in this field. The next column in our file is "Address."
- In order to have this field know automatically what field value is needed based on the selection in the parent field, we need to tell it where the parent field is located and what it is called.
- Reference Screen
- This is the name of the screen where the parent field is located. The parent field could be located either on the same screen or on an earlier screen.
- Reference Field
- The name of the parent field.
GoCanvas Tip
Choosing in this order may seem counter-intuitive, to take the biggest piece and then go smaller. So the following statement explains what we are trying to accomplish in reverse order:
"When I select the customer from the Customer Name field that is on the Customer Information screen then the customer's Address from the Customer Information file will appear."
Simply repeat the above steps until all fields that will reference the parent field are complete.
