Static Images are a great way to relay visual information when text alone doesn't suffice.
Static Image Field
Blueprints, floor plans, diagrams, keys and legends are just a few examples of things you might want to incorporate into your form using the Static Image field.
GoCanvas Tip
Since Static Images are meant to be purely references while completing a form, they cannot be added to the PDF. If you want the image to be in the PDF, add the image as an Image Element in the PDF Designer.
Adding a Static Image

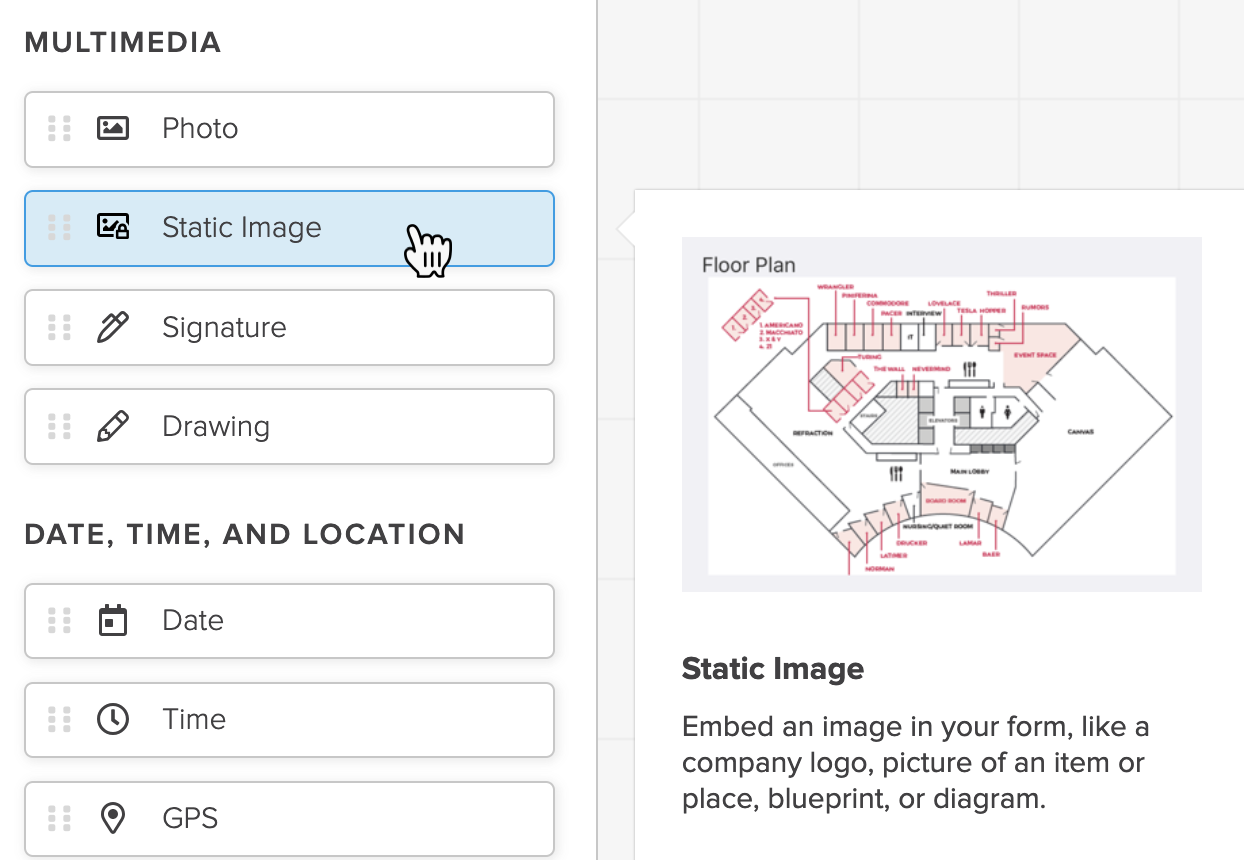

- Drag a Static Image field from the field library and place it in your form.

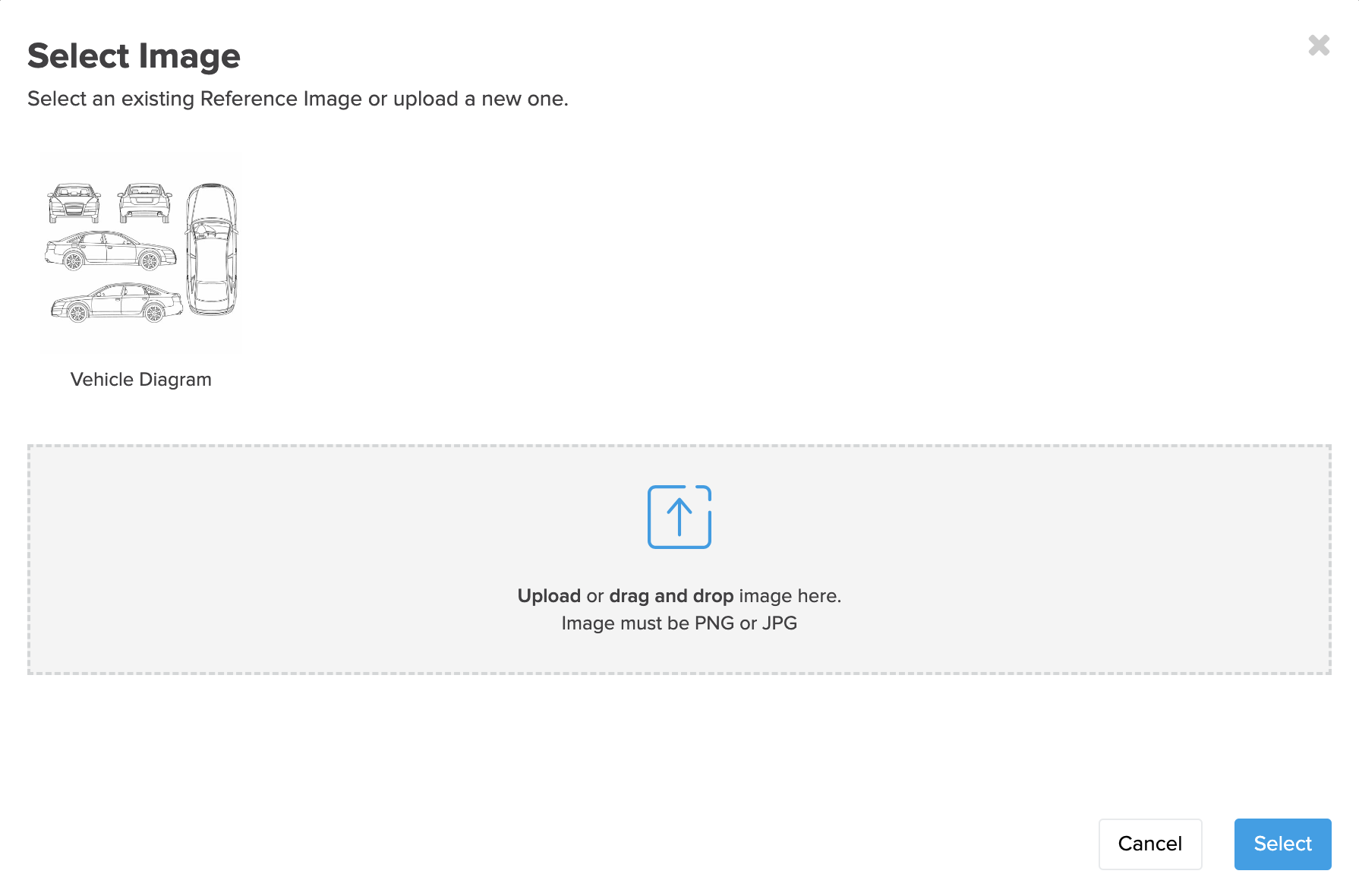

- A pop-up will then allow you to select a Reference Image you've previously uploaded to your account, or upload an image from your local files. Select the highlighted space to browse your files, or simply drag and drop them into the space.

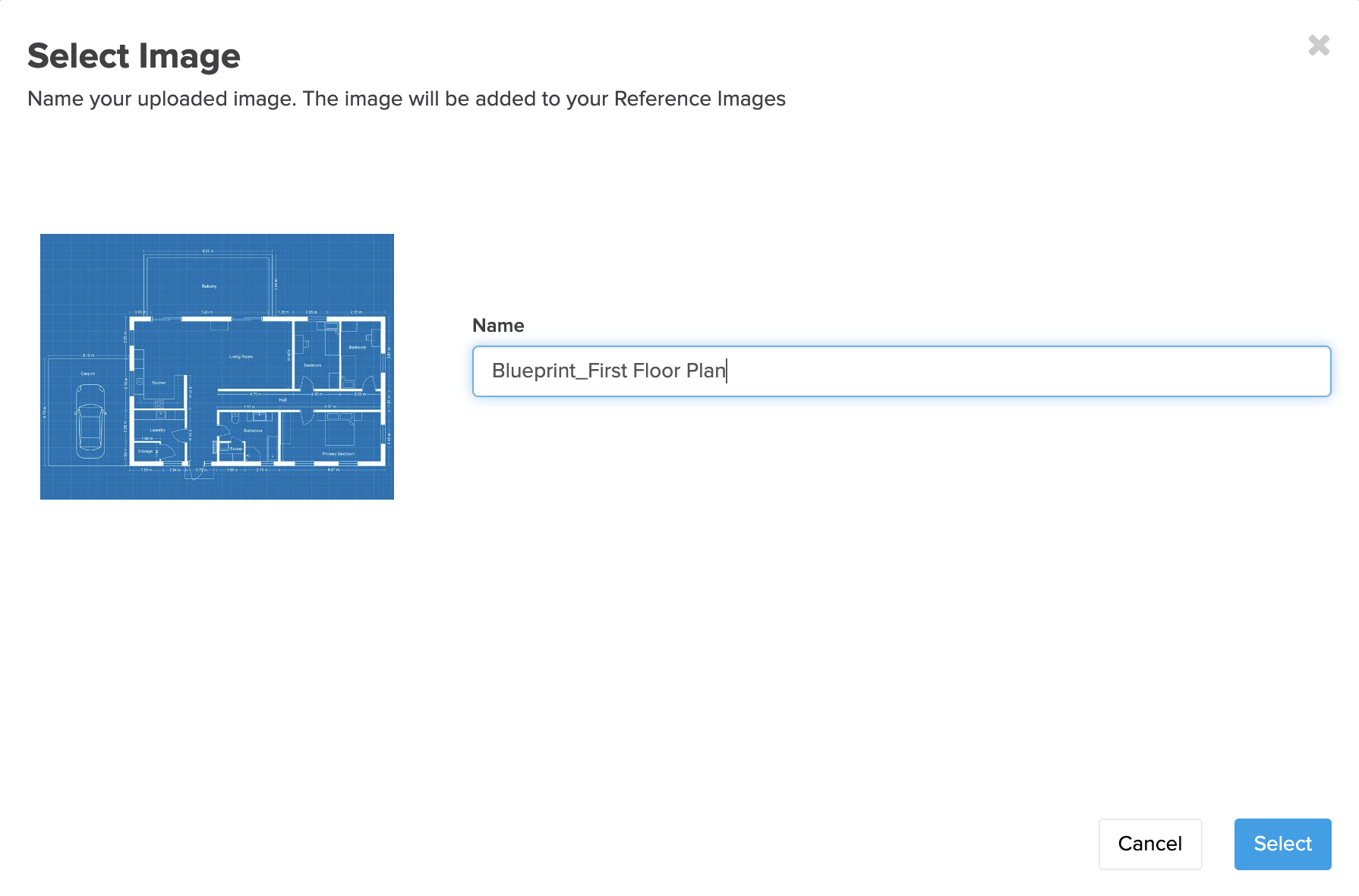

- When you browse your files and select an image, it will automatically take the original file name. The file name can be edited here if you'd like, and then proceed with Select.
- Update the Field Label with a short description of what the image represents.
- Save and Publish to device to see it in action.
Static Images on Mobile

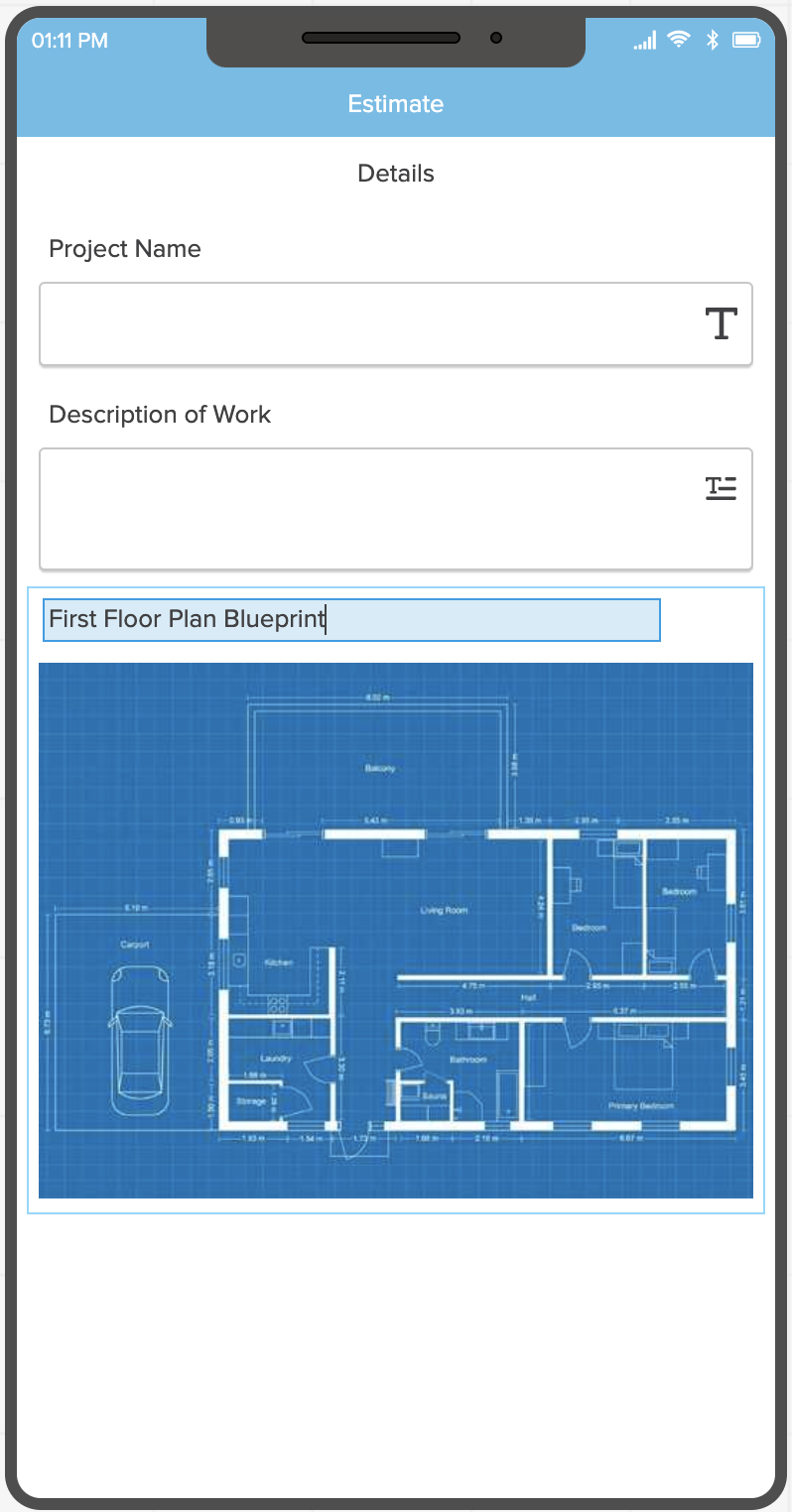

On mobile, users can open full-size images, zoom in, and pan around to get a more detailed look.
Please Note
As a default, accounts are limited to 10 Reference Images but you may Submit a Ticket to our Support team to request an increase.
