Dependent Reference Data

Think of Dependent Reference Data as a filter within your form. The parent field filters the next field to choices specific to the first and the second drop down filters subsequent fields to even more specific choices and so on.

A great way to understand how powerful dependent reference data can be is to think of a vehicle database. First, the make of the vehicle, or brand, is selected. Then in the next drop down, you will only be presented with the models available from that brand. You can then choose the body style appropriate to that model. There may then be details specific to that body style that we only want to see when associated with the appropriate model.

Hopefully it is clear that using dependent reference data to filter information in a form would be incredibly useful for data integrity and smoother form filling experience.

GoCanvas Tip

Another example of Dependent Reference Data is linking multiple Reference Data files to each other within one form and that solution can be found in the Help Center article, "Solution for the 15 Column Limit in the Legacy Builder."

Step 1: Creating your Reference Data File

Reference Data files are most easily created using Google Sheets. If you use Excel, you will need to Save As a Comma Separated Values (.csv) file type.

Please Note

Do not use the CSV UTF-8 (Comma Delimited) (.csv), or any specialty .csv file (i.e. Macintosh Comma Separated, MS-DOS Comma Separated, etc.) as these file types may introduce random characters or not work as expected.

The example we will use today is an apartment complex. If you can imagine a complex of apartment buildings, zoom into one of those buildings, then a floor within that building, and then a singular apartment. Each unit has its own layout and unit 101 in one building may be a studio but a 2 bedroom/2 bath in another building. So using dependencies, we are able to select the building, floor, and unit in order to pre-fill the correct layout.

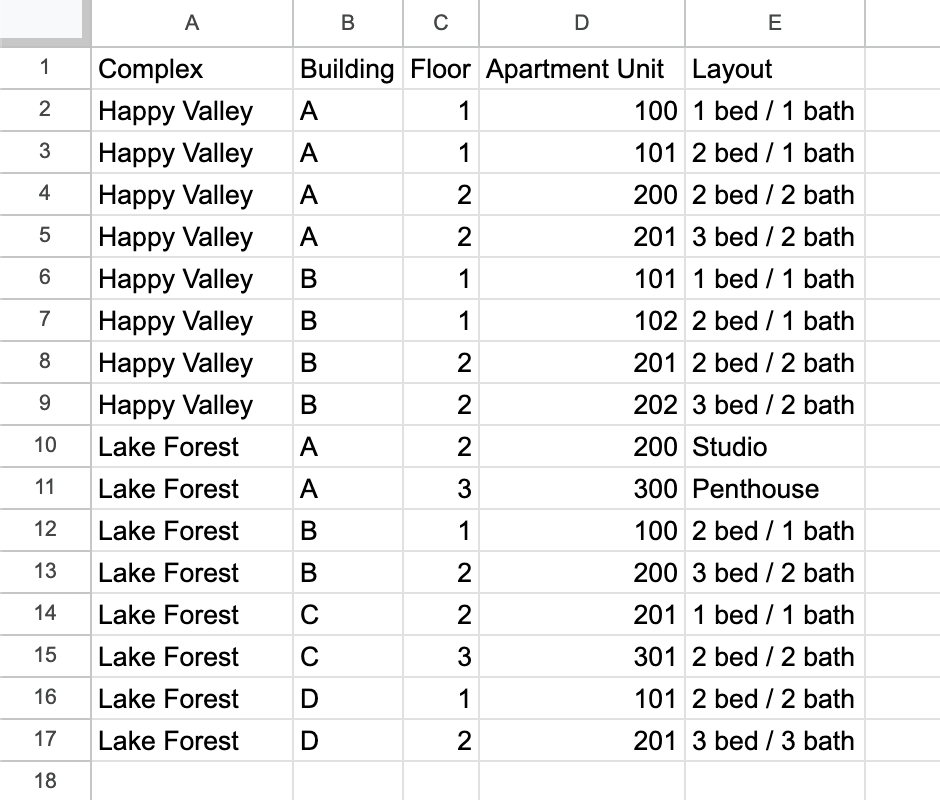

A sample of that spreadsheet may look like this:

RD&I_Dependent Reference Data Sheet example.png

Step 2: Uploading your Reference Data to GoCanvas

There are several methods to upload your file to GoCanvas. If you are in the Legacy Builder, a .csv file can be uploaded from within the Legacy Builder or on the Reference Data & Images page. If you are using the Builder or Google Sheets, all reference data files must be uploaded on the Reference Data & Images page. Please visit the Help Center article, "Upload a Google Sheet as Reference Data" to learn more.

Step 3: Mapping your Reference Data to your Form Fields

Mapping the Parent Field

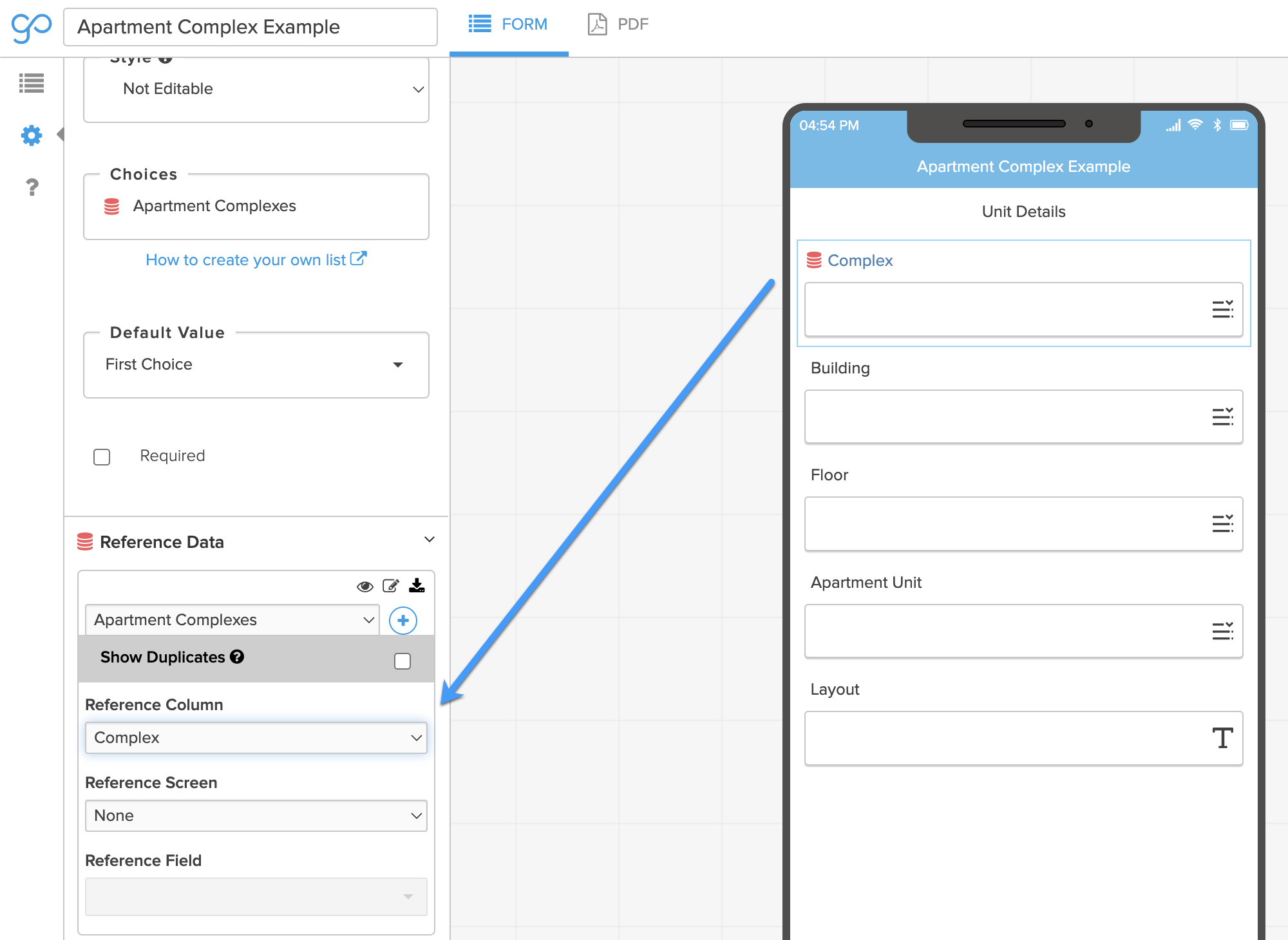

  1. Find or create a field that will be attached to reference data. Drop Down field types are the best for this use case. Select it to open Field Settings in the left panel.
  2. Expand the Reference Data tab.
  3. Select the correct reference data file from the first drop down menu.
  4. The Reference Column is the column of data from your file that you want to appear in this field.

This completes mapping the parent field.

RD&I_Dependent Reference Data_Parent Field.png

Mapping the Second Field

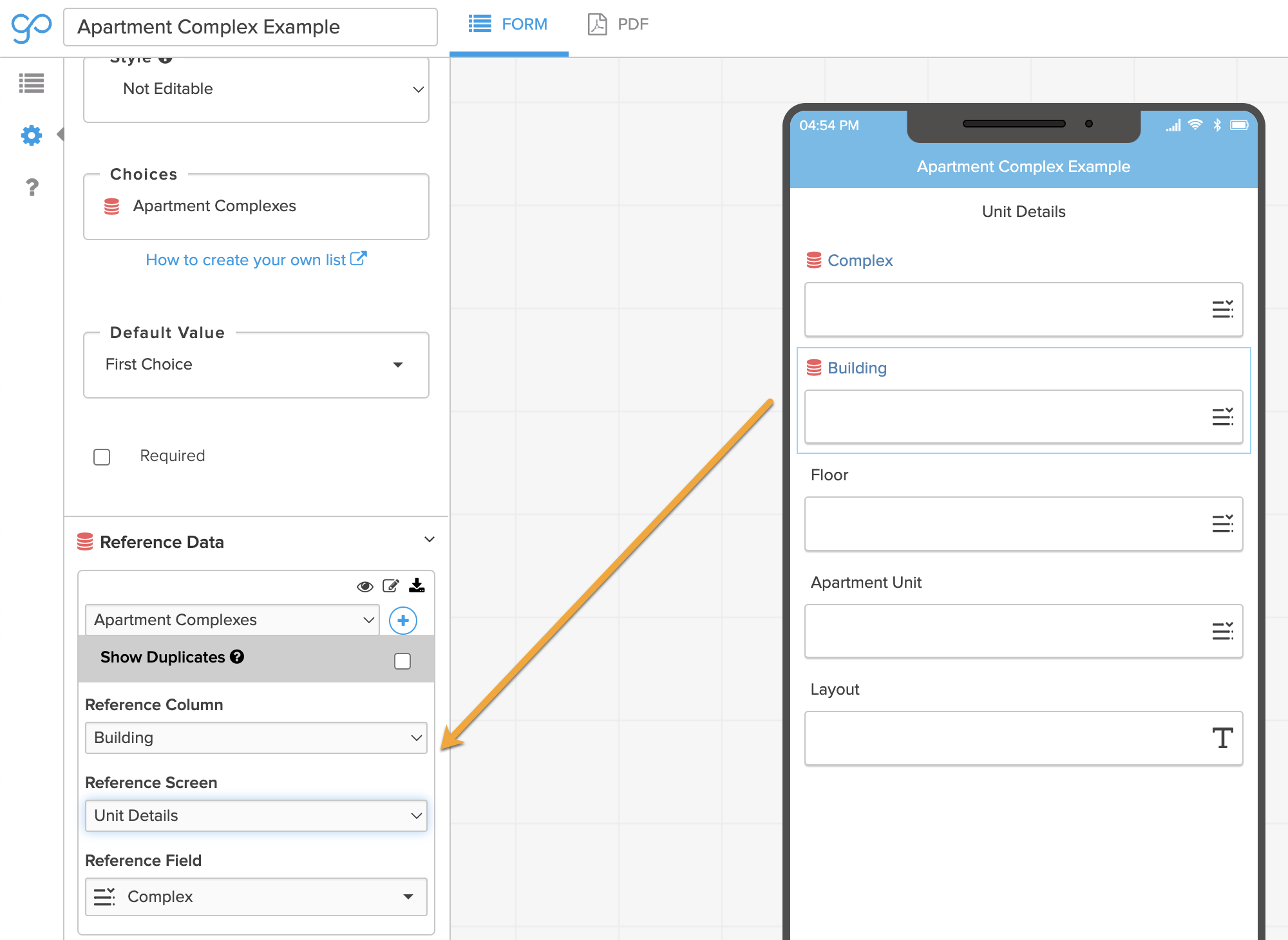

  1. Find or create the next field. A drop down menu is still the best field type for the filtering effect we are trying to achieve. Select it to open Field Settings in the left panel.
  2. Expand the Reference Data tab in the field settings.
  3. Select the same reference data as the parent field.
  4. Select the column this field will be referencing. Remember, if you name the fields the same thing as the column header, this should be easy.
  5. In order to have this field know automatically what field values are appropriate based on the selection in the parent field, we need to tell it where the parent field is located and what it is called.
Reference Screen

This is the name of the screen where the parent field is located. The parent field could be located either on the same screen or on an earlier screen.

Reference Field

The name of the parent field.

Once you have filled in all four drop down menus, this field is complete.

RD&I_Dependent Reference Data_Second Field.png

Mapping the Third Field

Now we are reaching the point in mapping that veers from standard reference data. If we wanted all fields to automatically populate off the parent field, we would repeat the last set of steps until all fields were mapped. However, we are trying to create dependencies so that each drop down menu is filtered based on the choice in previous fields. So the next field needs to reference the second field and not the parent field.

  1. Find or create the next field. A drop down menu is still the best field type for the filtering effect we are trying to achieve. Select it to open Field Settings in the left panel.
  2. Expand the Reference Data tab.
  3. Select the same reference data file.
  4. Select the column this field will be referencing.
  5. Select the screen where the previous field is located.
  6. Select the name of the previous field. The parent field may automatically populate here so just select the previous field from the drop down menu.

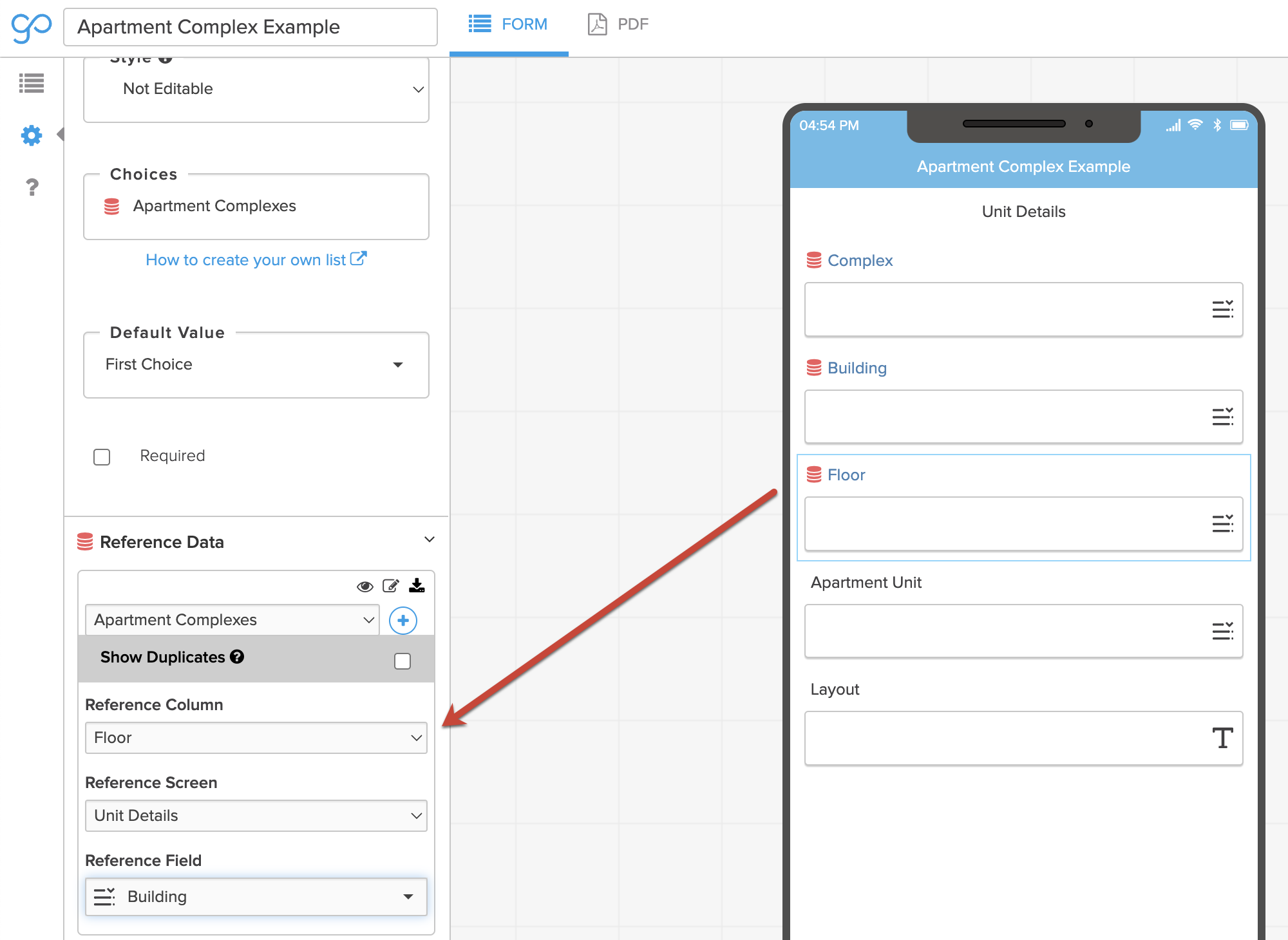

RD&I_Dependent Reference Data_Third Field.png

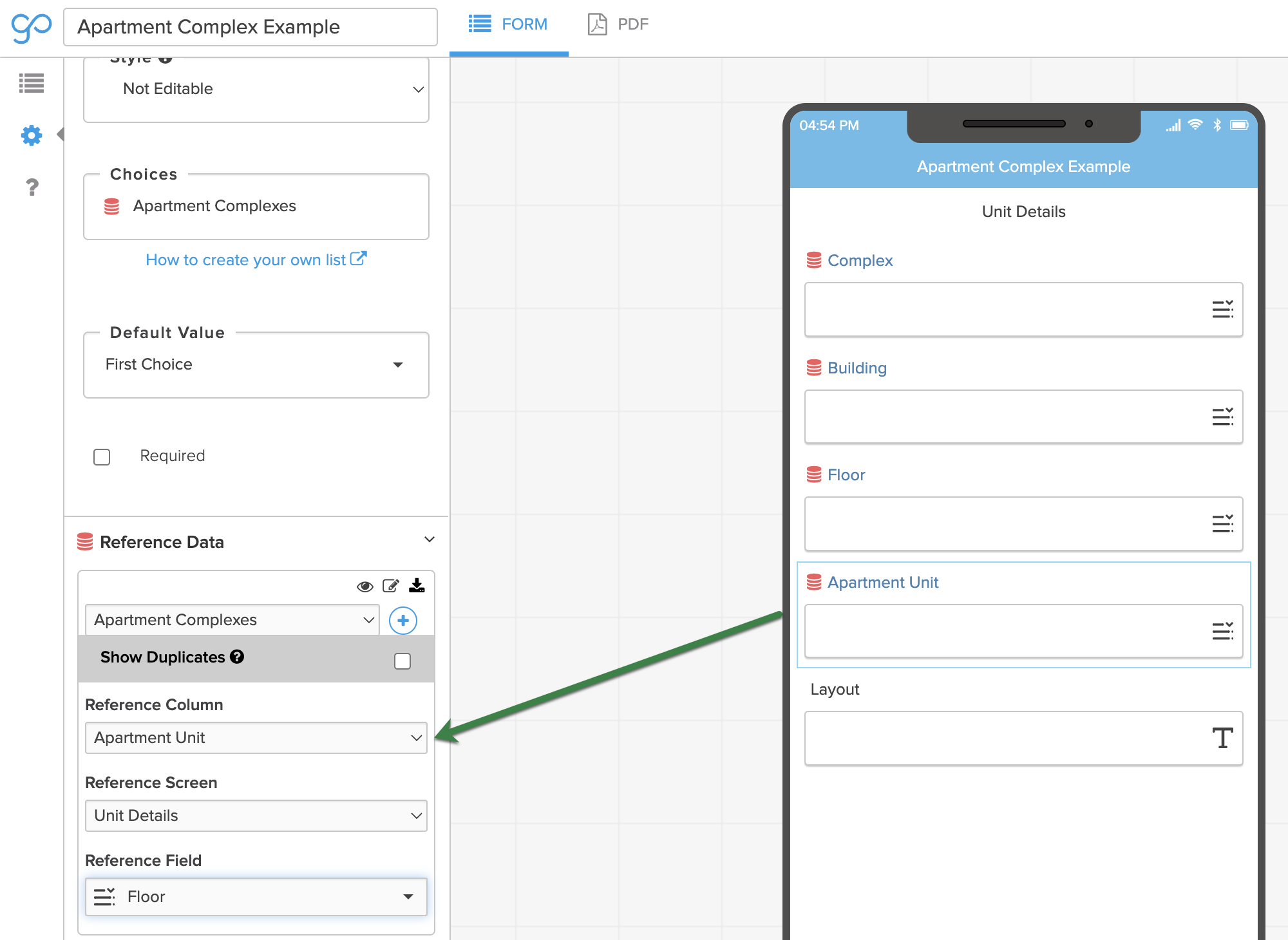

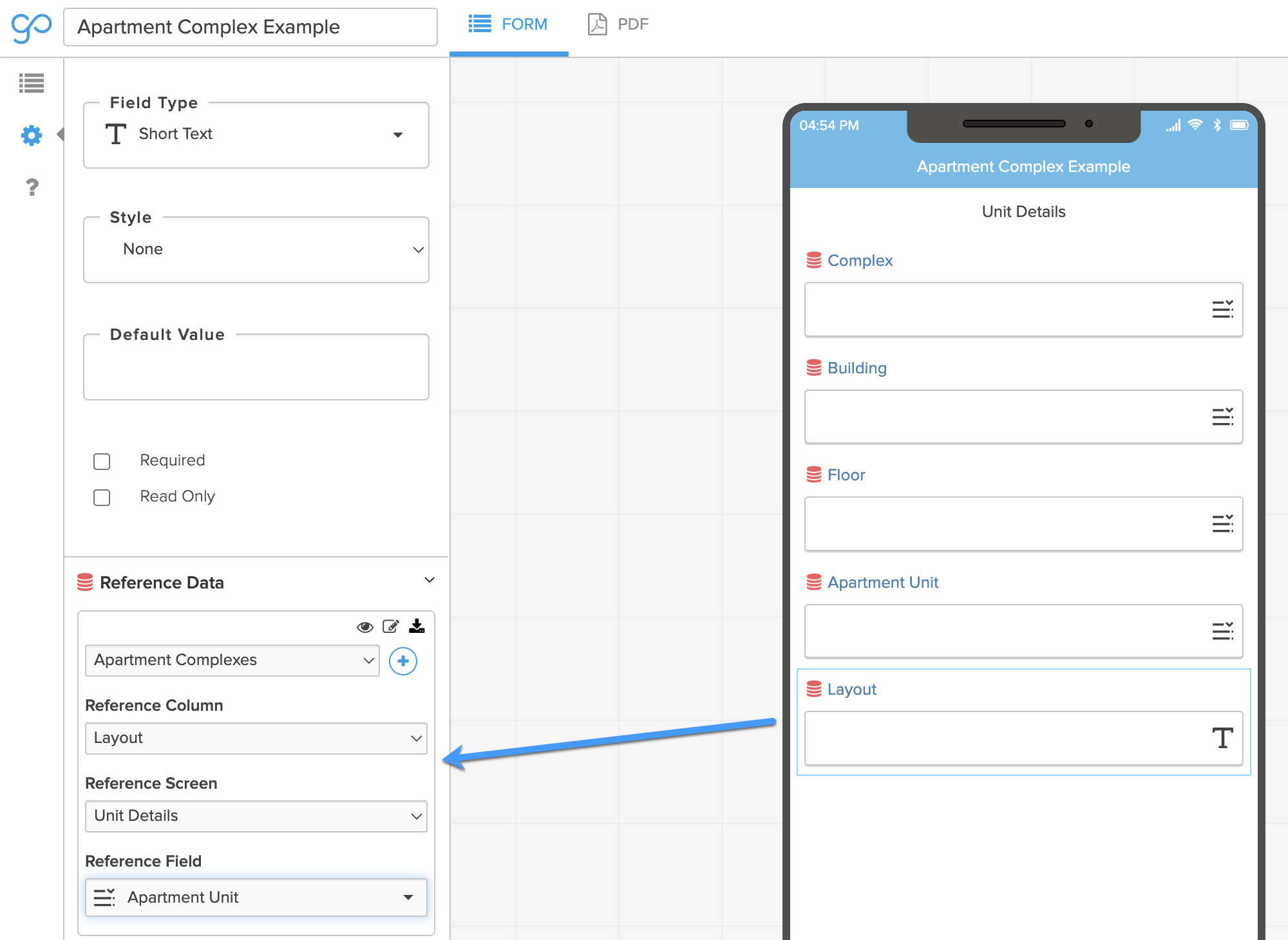

Repeat these steps until all fields are mapped, remembering to always reference the field that influences the choices within the field you are currently mapping. Take a look at the following screenshots to see how this plays out with a fourth and fifth field.

RD&I_Dependent Reference Data_Fourth Field.png

RD&I_Dependent Reference Data_Fifth Field.png

If "Apartment Unit" is the last field that contains more than one choice, any remaining fields with only one possible value will reference "Apartment Unit." Remember to publish and test your form to make sure all drop down menus are populated correctly.

GoCanvas Tip

Remember that all possible choices and combinations must be accounted for in the spreadsheet. This means there will be a lot of repeated values in the spreadsheet but showing them in the form will be complicated. For best results, leave "Show Duplicates" unchecked. If you are using a loop screen with dependent reference data, remember to turn on "Allow Duplicates" in the Screen Settings so that you choose the value for the key field more than once.
